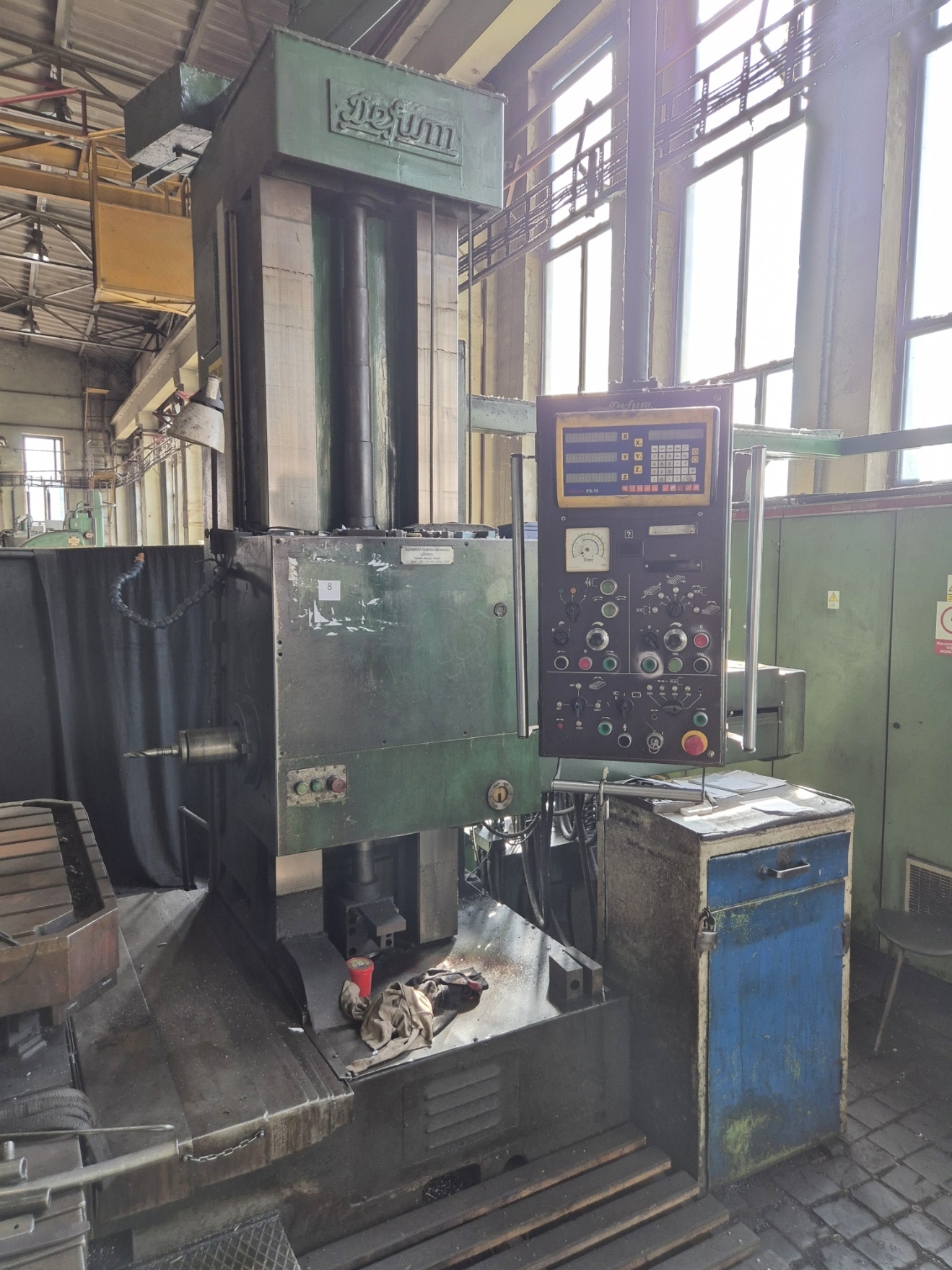

DEFUM ADS-115 boring machine

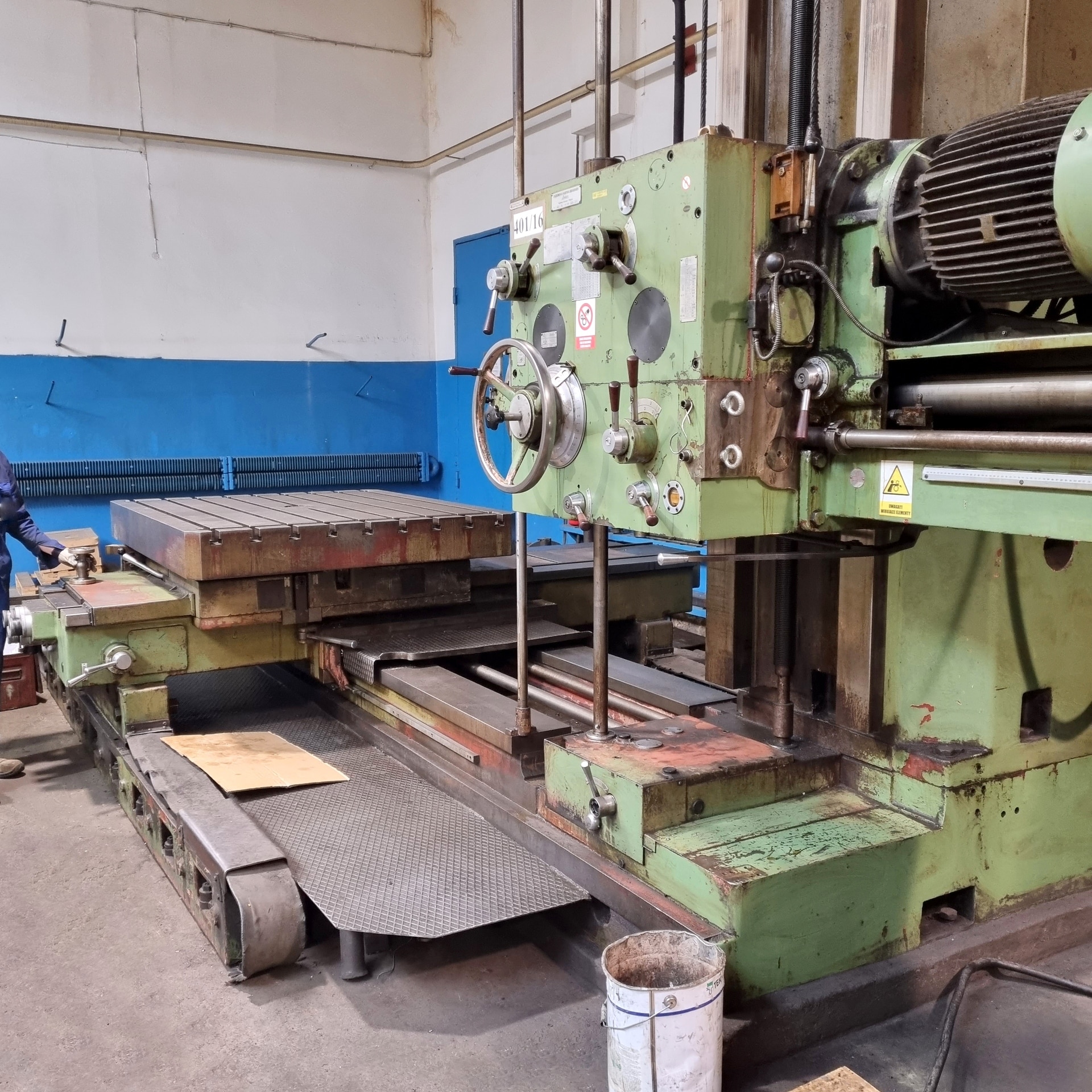

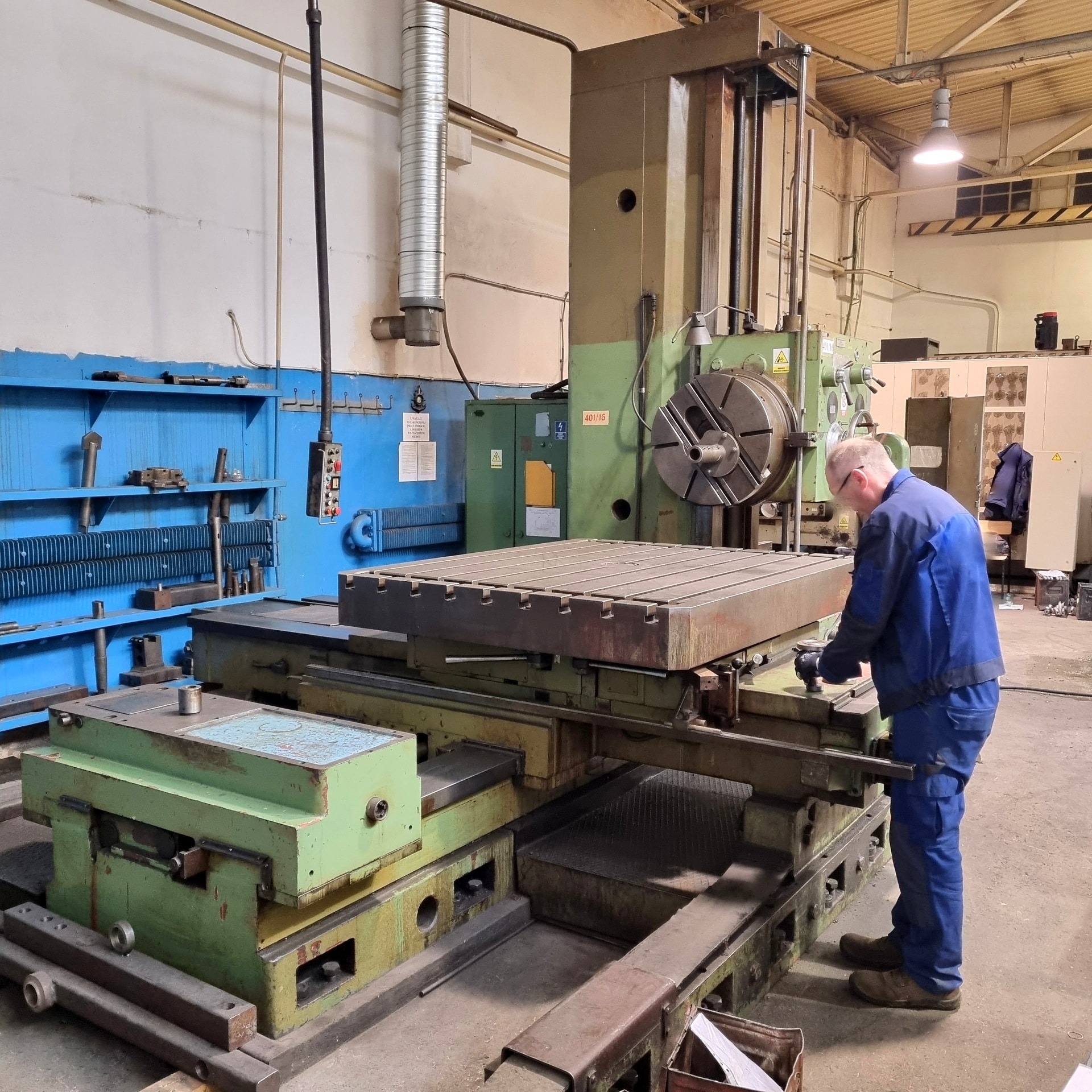

DEFUM ADS-115 boring machine was manufactured in Poland. The reliable machine is used for, among others, drilling, boring, planning, reaming, milling and threading workpieces with a maximum weight of 6 tonnes. Thanks to the use of a large work table with an area (L x W) of 1500 x 1800 mm with manual and mechanical rotation, it is possible to comfortably load larger workpieces which do not fit on standard-sized drilling and milling machines. For increased spindle travel and transverse table travel, the cross-table drilling and milling machine is equipped with two additional guides. The feeds of the spindle with a diameter of 115 mm and a maximum speed of 674 rpm are switched off automatically in extreme positions. The machine is equipped with, among others, a 750-mm-diameter disc with an integrated planning slide, changewheels and various types of screws. The total weight of the DEFUM AD-S 115 boring machine is 26000 kg. Technical specifications of the DEFUM ADS-115 drilling and milling machine work table dimensions (L x W): 1500 x 1800 mm maximum workpiece weight: 6000 kg maximum spindle speed (50 Hz): 674 rpm minimum spindle speed (50 Hz): 10 rpm number of spindle speeds: 18 number of spindle feeds: 100 spindle feed rate range: 0.017-12 mm/rev spindle diameter: 115 mm spindle taper: Morse 6 largest spindle travel: 850 mm largest distance between spindle axis and table surface: 1900 mm smallest distance between spindle axis and table surface: 0 mm transverse table travel: 2000 mm longitudinal slide travel: 1400 mm number of spindle and transverse table feeds: 20 range of spindle and transverse table feeds: 0.035-10.7 mm/rev number of longitudinal table feeds: 20 range of longitudinal table feeds: 0.034-10.5 mm/rev largest planning diameter: 1000 mm smallest planning diameter: 400 mm largest hooping diameter: 1000 mm smallest hooping diameter: 400 mm disc diameter: 750 mm maximum disc speed (50 Hz): 380 rpm minimum disc speed (50 Hz): 10 rpm number of disc speeds: 15 diameter of clamping plane on disc: 750 mm largest slide extension in disc: 190 mm largest distance from disc to support: 3200 mm number of planning slide feeds: 10 feed rate range of the planning slide: 0.026-2 mm/rev metric thread pitch: 0.2-12 mm two-speed main motor power: 13/19 kW dimensions (L x W x H): 6807 x 3883 x 4180 mm ADS-115 machine weight: 26000 kg Boring machine equipment boring knife vise with slide for planning hand crank changewheels for feed and thread z=36, 40, 45, 50, 54 foundation bolts with washers and nuts clamping bolts M30x110 clamping bolts M30x80 steel washers 70x70x12 steel washers 120x120x16 24V installation for lighting lamp DTR – Technical and Operating Documentation
