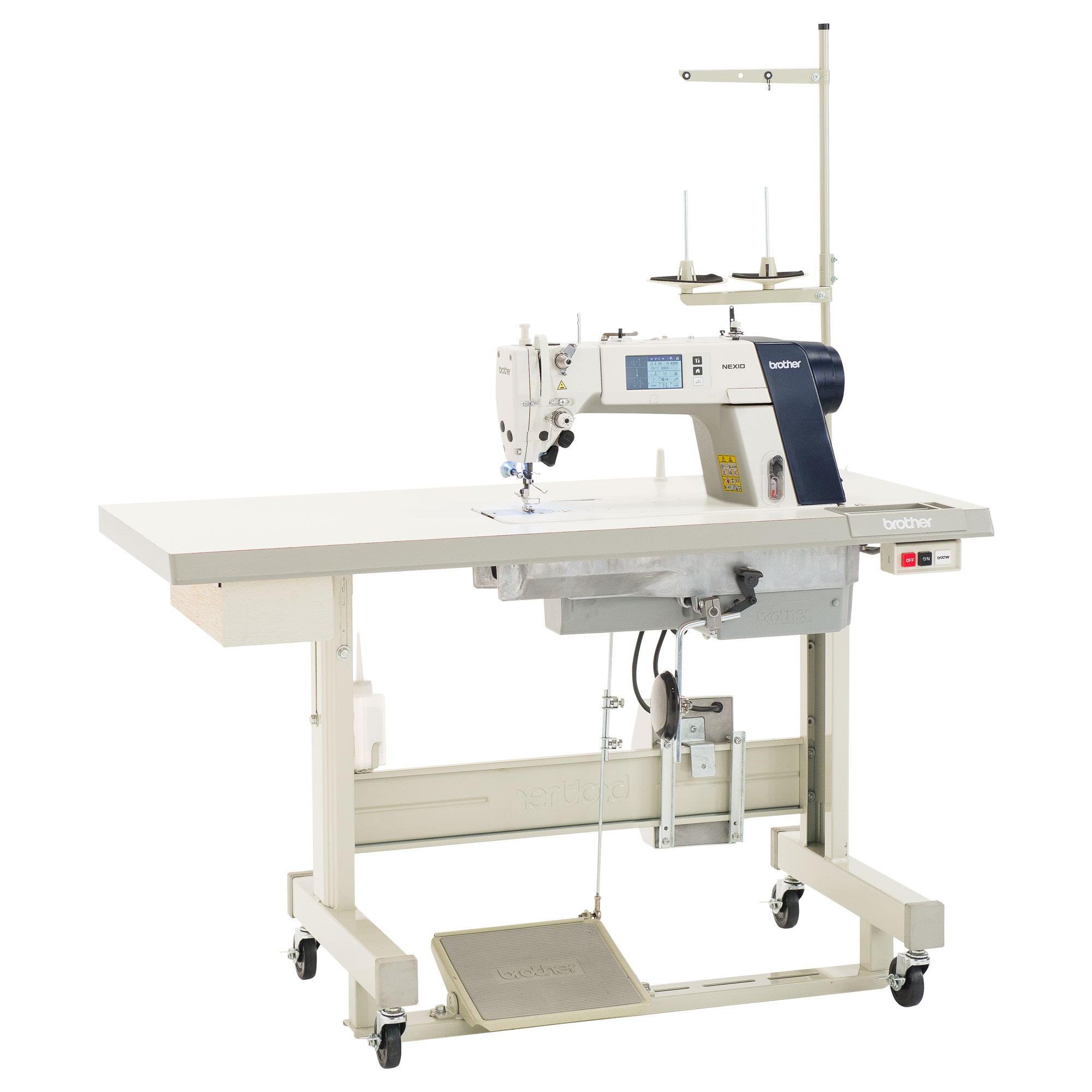

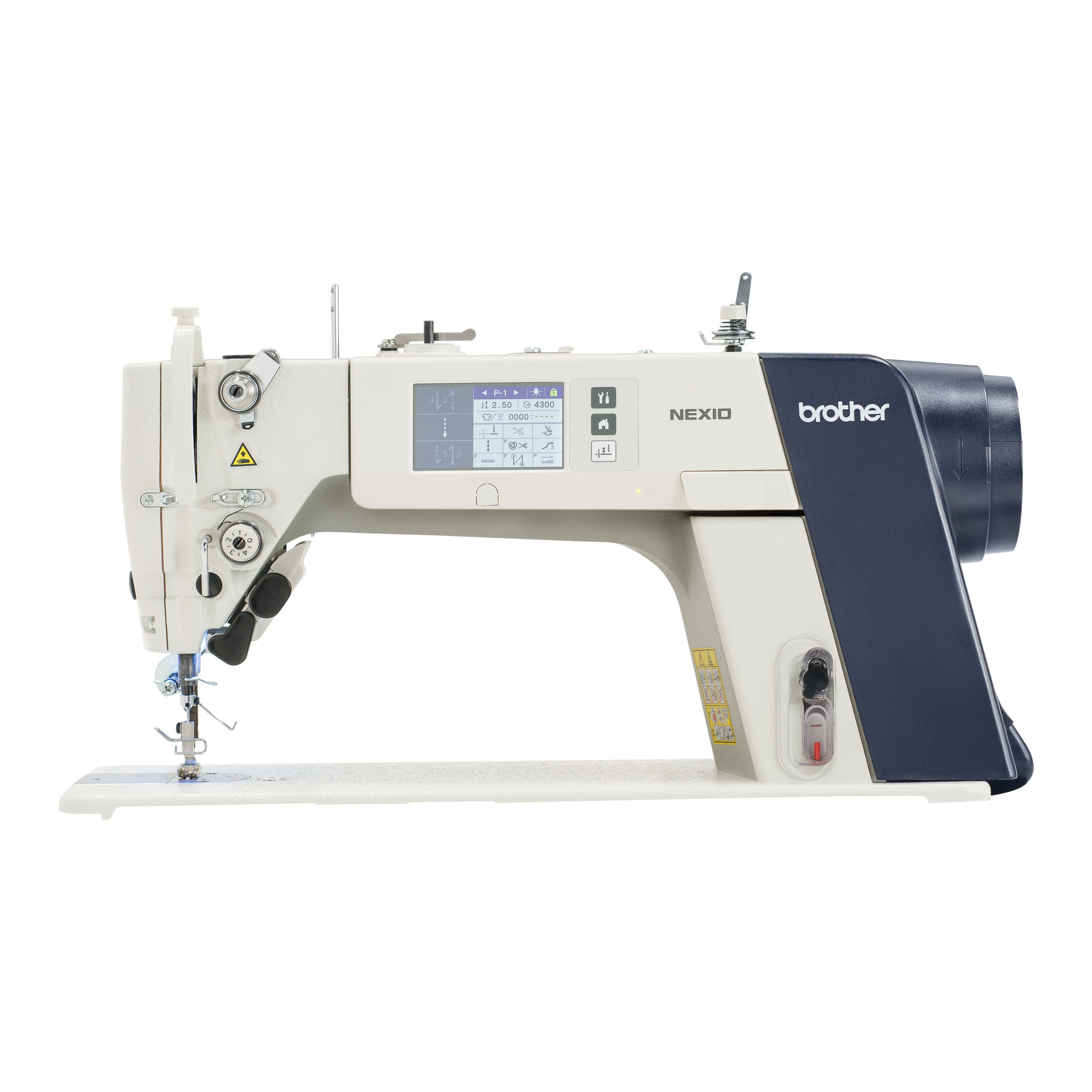

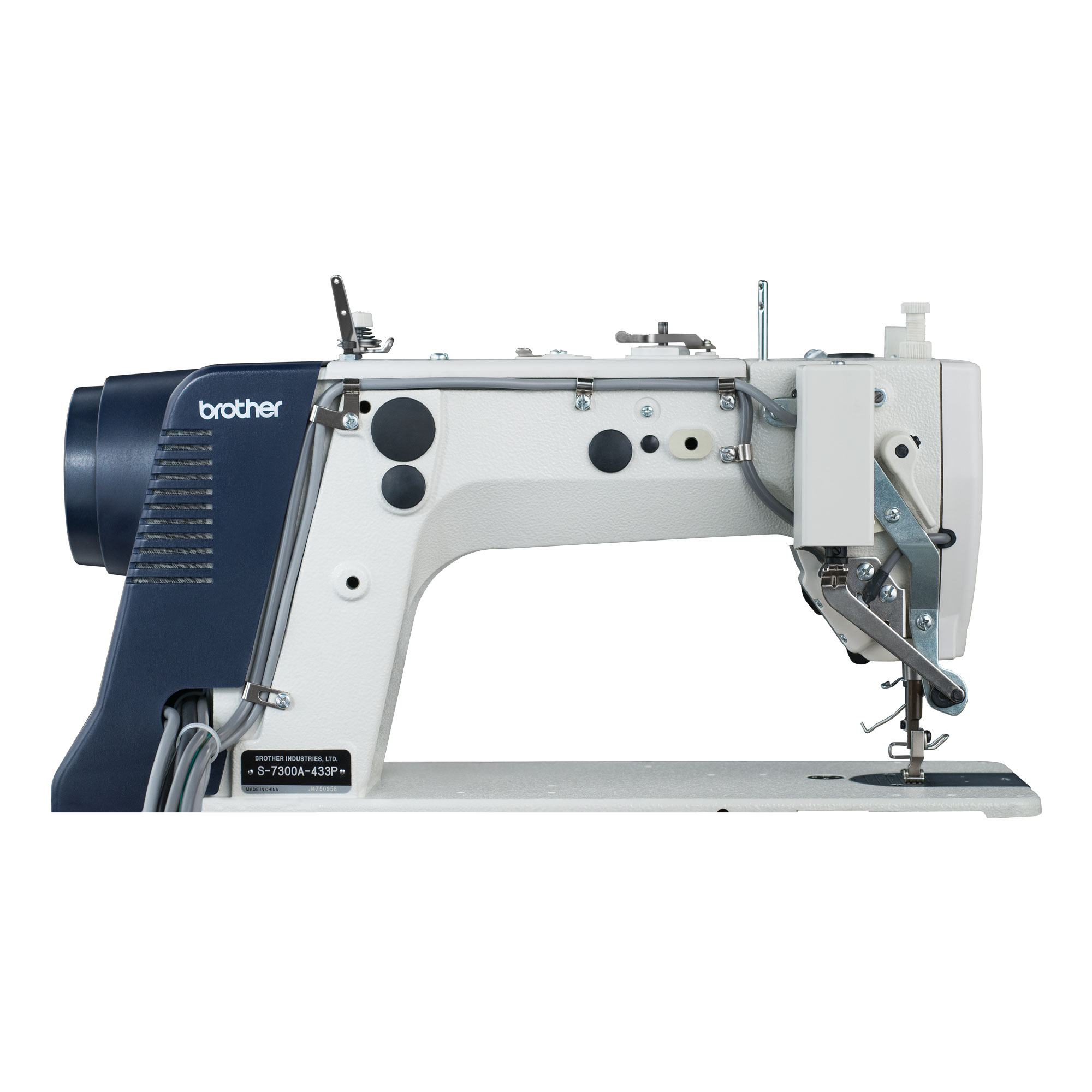

Brother S-7300A “NEXIO” – Lock Stitcher with DigiFlex

Description Brother S-7300A “NEXIO” – Single Needle Direct Drive Lock Stitcher with DigiFlex Electronic Feeding System and Thread Trimmer The world’s first lock stitch sewing machine which adopts the DigiFlex Feed Control directly connected with a stepping motor. Next-generation lock stitch machine, which establishes the new standard, has been born! Features World‘s first DigiFlex Feed Control directly connected with a stepping motor Reduction of disposition of thread ends Equipped the colour LCD touch panel for intuitive operation Offers a new value with Design Stitch Enhances the operability with new Hand Stitch Specifications S-7300A- -303P, -403P -305P, -405P -333P, -433P Lubrication type Minimum lubrication Minimum lubrication Semi dry Application Medium materials Heavy materials Medium materials Max. sewing speed Stitch lenght 4mm and under: Stitch lengh 4mm and under: Stitch lengh 4mm and under: 5,000 sti/min 4,500 sti/min 5,000 sti/min Stitch lenght 4mm and above: Stitch lenght 4mm and above: Stitch lenght 4mm and above: 4,000 sti/min 4,000 sti/min 4,000 sti/min Max. Back tacking speed 3,000 sti/min 3,000 sti/min 3,000 sti/min Max. stitch length 5mm Max. 7mm (default setting : 5mm) 5 mm Presser foot height Presser bar lifter: 6mm, knee lifter: 16mm Presser bar lifter: 6mm, knee lifter: 16mm Presser bar lifter: 6mm, knee lifter: 16mm Needle bar stroke 31mm 35 mm 31 mm Needle (DBx1•DPx5) #11-#18 (Nm75-110) #19-#22 (Nm120-140) #11-#18 (Nm75-110) Height of feed dog 0.8mm 1.2mm 0.8mm Weight 34.5kg 34.5kg 34.5kg Motor AC servo motor AC servo motor AC servo motor Power supply 100V-110V(*1), 200-230V, 380-400V(*1) under 450VA 100V-110V(*1), 200-230V, 380-400V(*1) under 450VA 100V-110V(*1), 200-230V, 380-400V(*1) under 450VA *1 The transformer is required.
