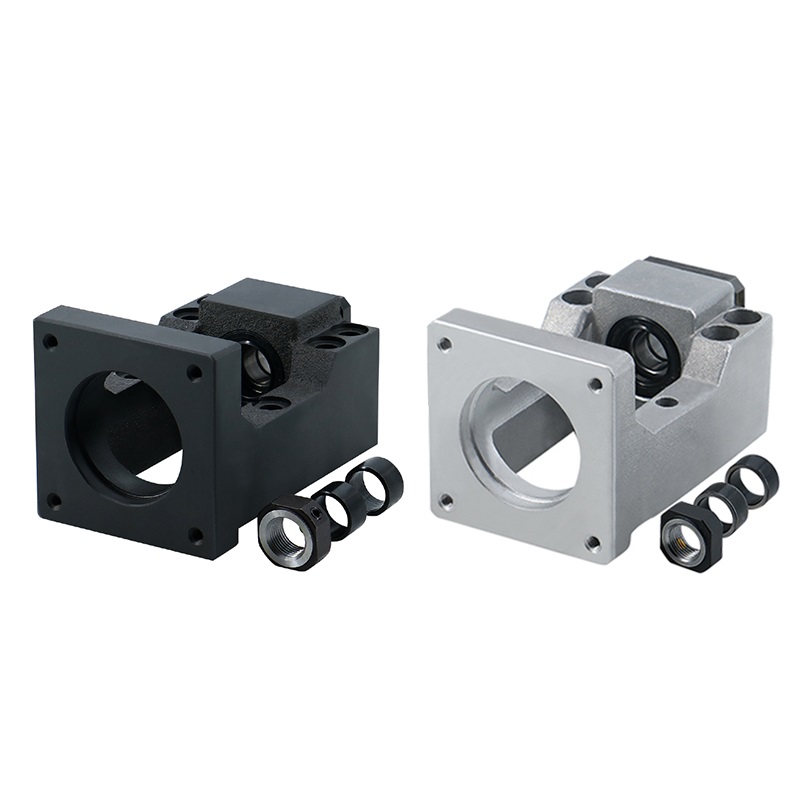

Ball Screw End Support With Motor Mount Bracket

Item Name: Ball Screw End Support With Motor Mount Bracket Material: Steel, bearing Measurement System: Metric PCs in Item: 1 PC or 1 Set. See buying options Download: Some CAD files are provided by the manufacturer;  See more details regarding Digital File download.  Manufacturer: N/A, Made in China Notes: Mount Bracket Ball Screw Recommended Support End Recommended Ball Screw Seat Recommended Shaft Coupler Ball Screw Lock Nut HM10-Nema 23 12xx BF10 DSG12 D25-L30 M10*1 HM10-Servo 60 HM12-Nema 23 16xx BF12 DSG16 D30-L42 M12*1 HM12-Servo 60 HM15-Nema 23 20xx BF15 DSG20 D30-L42/D35-L50 M15*1 HM15-Servo 60 HM15-Servo 80 HM15-Nema 34 HM20-Nema 34 25xx BF20 DSG25 D40-L66 M20*1 HM20-Servo 80 HM20-Servo 110 HM20-Reducer 90
