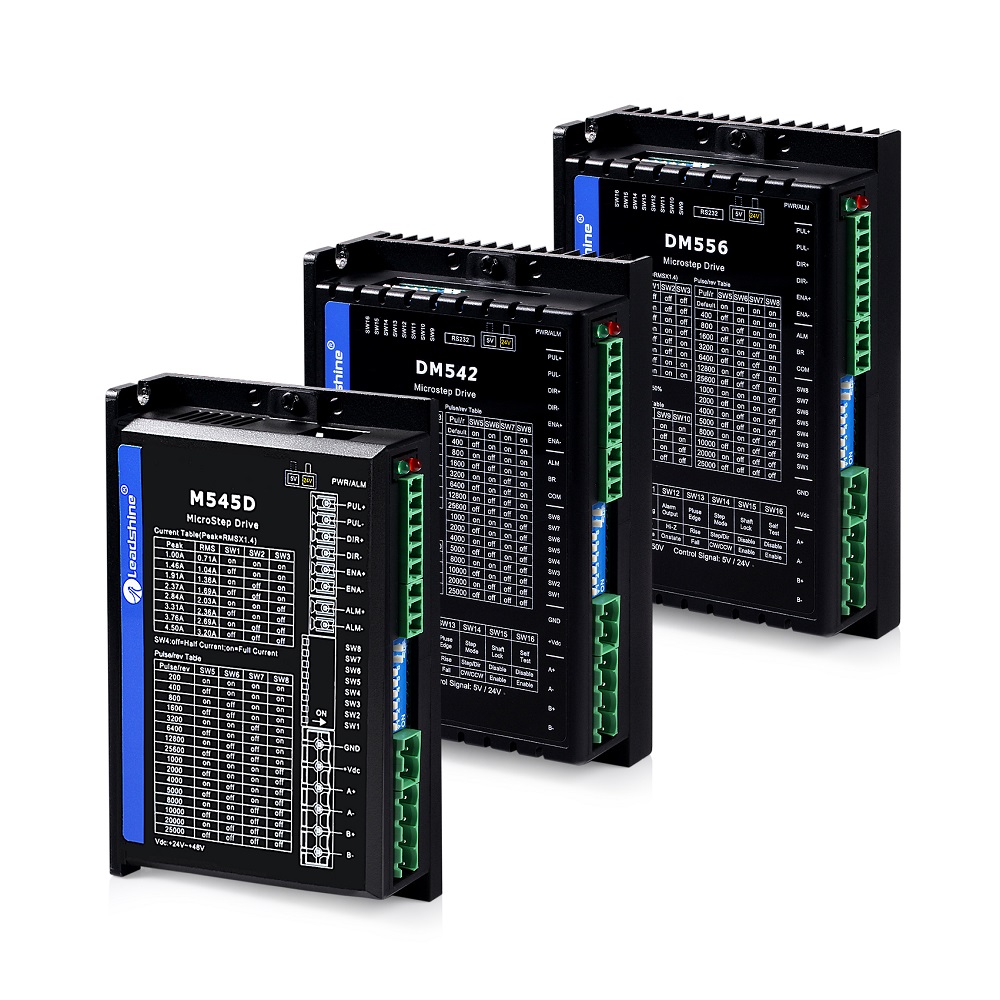

Leadshine Stepper Motor Driver

Item Name: Leadshine Stepper Motor Driver Description: Leadshine DM series are highly reliable with good performance and highly competitive cost. They can power a wide range of stepper motors from NEMA 8 to NEMA 53 PCs in Item: 1 PC Manufacturer: Leadshine Control Technology Co. Ltd., China Reference Parameters Model DM542(J) DM542 V3.0 M545D V4.0 M556D V4.0 DM556 V3.0 Command Source PUL & DIR PUL & DIR PUL & DIR PUL & DIR PUL & DIR Operation Voltage (VDC) 18V-48V (24/36) 18V-48V (24/36) 18V-48V (24/36) 18V-48V (24/36) 20V-50V (24/36/48) Output Current (A, Peak) 1.0-4.2 1.0-4.2 1.0-4.2 1.8-5.6 1.8-5.6 Input Frequency (KHZ, Max) 200 200 200 200 200 Logical Voltage (VDC) 5V/24V 5V/24V 5V/24V 5V/24V 5V/24V Dimension (mm) 118 x 75 x 25.5 118 x 75 x 25.5 118 x 75 x 25.5 118 x 75.5 x 34 118 x 75.5 x 34 Weight (g) 230 230 230 280 280 Feature without Brake Port with Brake Port Suitable Motor Nema 17, Nema 23 Nema 17, Nema 23 Nema 17, Nema 23 Nema 23, Nema 34 Nema 23, Nema 34
