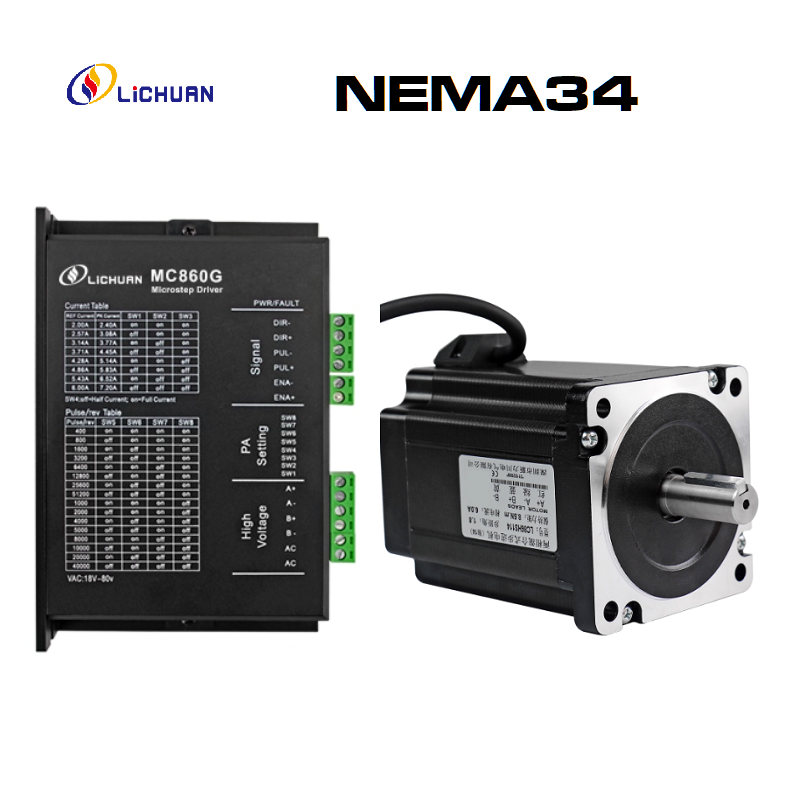

NEMA 34 Hybrid Stepper Motor and Driver

Item Name: NEMA 34 Hybrid Stepper Motor with Driver Set Main Feature: PCs in Item: See options Manufacturer: ShenZhen XinLiChuan Electric Co,. LTD, GuangDong China Reference: Nema34 Hybrid Stepper Motor Drvier Parameters Nema34 Hybrid Stepper Motor Parameters Reference Parameters Step Angle Body Length (mm) Holding Torque (Nm) Rated Current (A) Dielectric Strength (g.cm²) Weight(Kg) LC86HS80 1.8° 80 4.5 3.0 3000 2.5 LC86HS98 1.8° 98 6.9 5.0 4100 3.4 LC86HS114 1.8° 114 8.5 5.0 5000 4 LC86HS128 1.8° 128 10 6.0 5800 4.5 LC86H150 1.8° 150 12 6.0 9200 5.4
