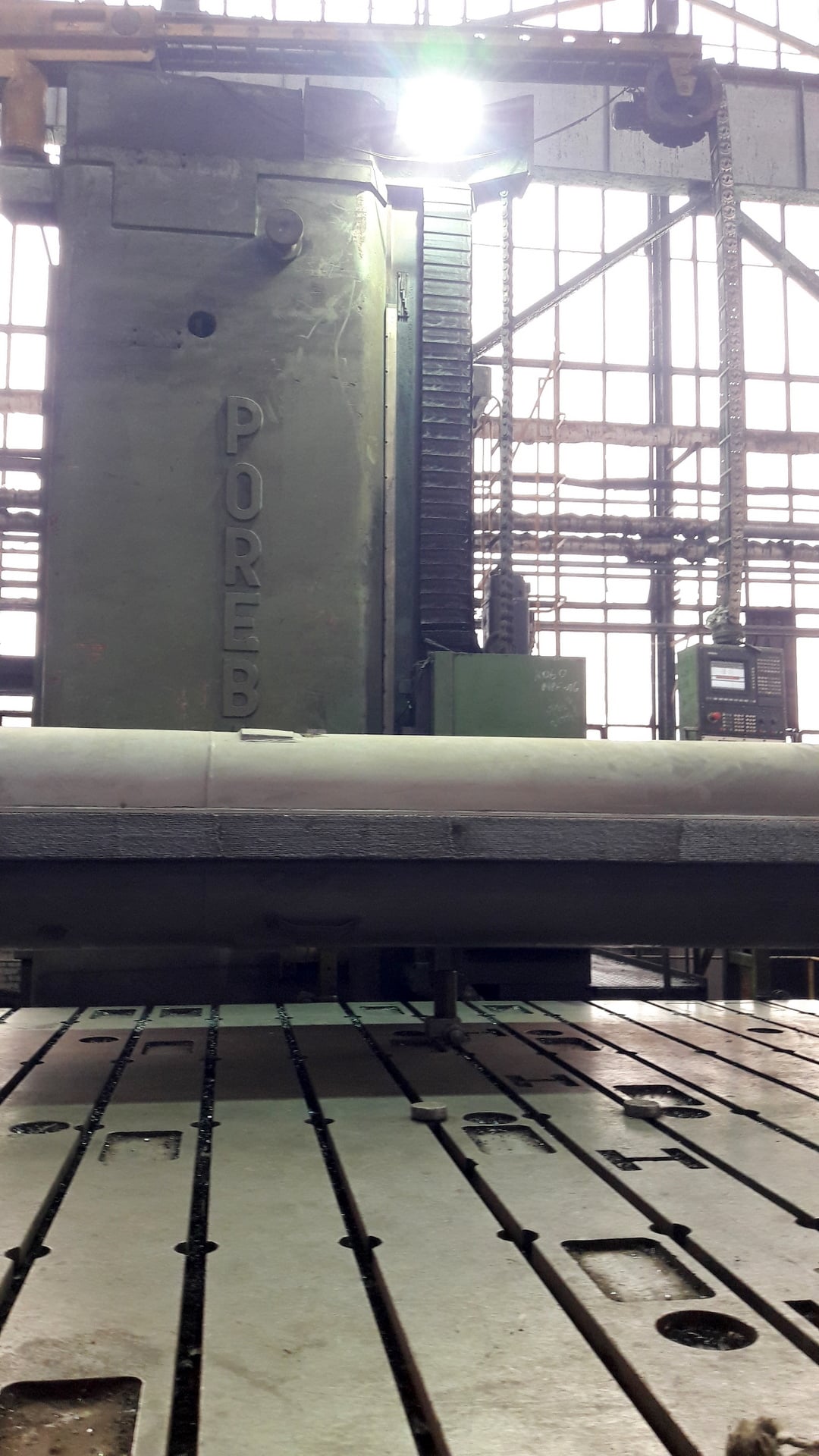

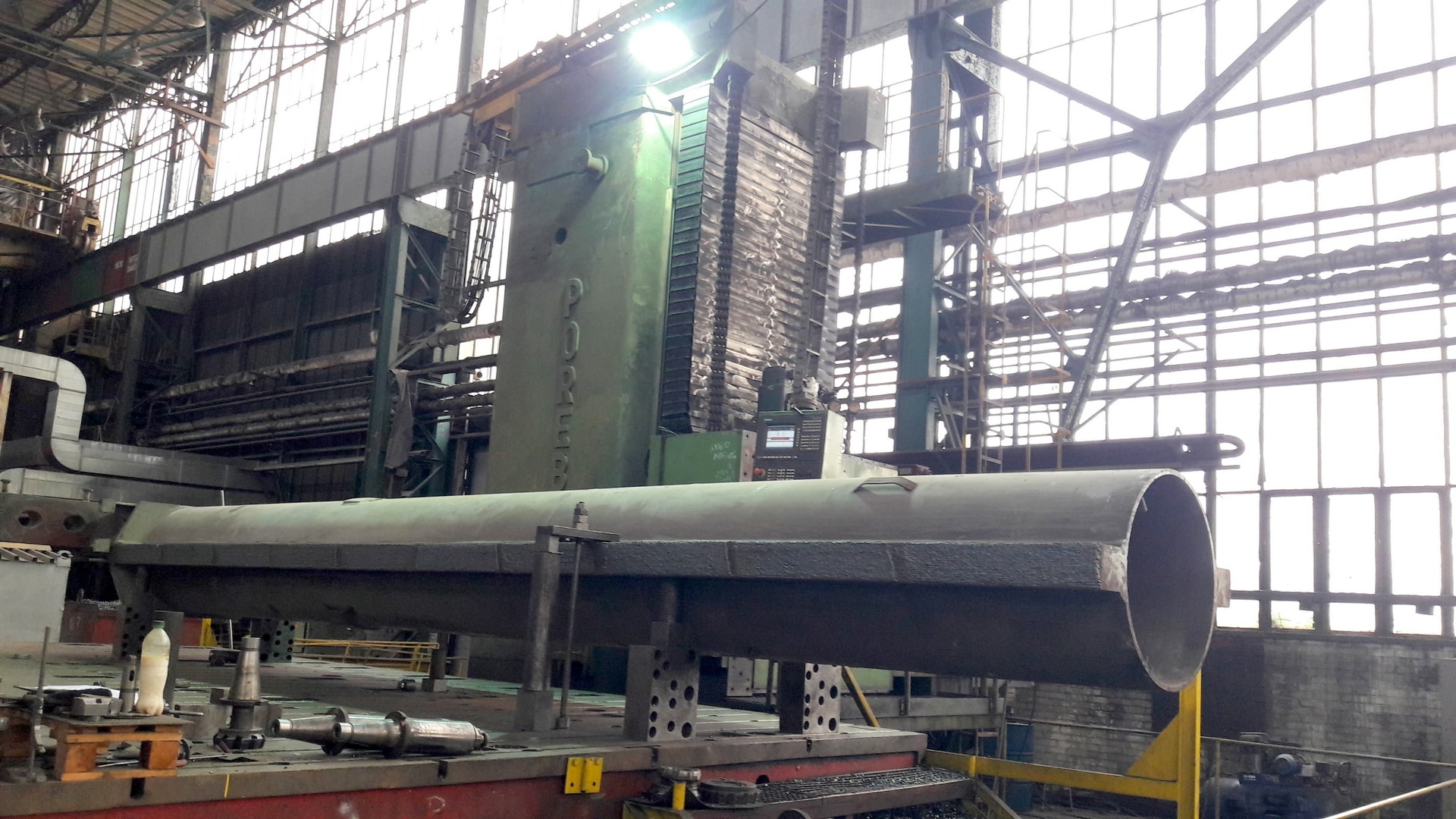

PORĘBA WFA 200B CNC boring machine

PORĘBA WFA 200B CNC boring machine built in Poland in 1997 can perform a range of complex machining operations, such as precise drilling, milling and boring on workpieces with complex geometry and heavy weight. All of these machining processes are performed on a stable work table with a length of 8130 mm and a width of 4980 mm, whose design allows easy workpiece loading. During the modernisation undertaken in 2005, the PORĘBA CNC floor type boring machine was retrofitted with a numerical control of the renowned SIEMENS brand. Technical specification of horizontal boring machine PORĘBA WFA 200B CNC controller: SIEMENS SINUMERIK 840C work table surface (L x W x H): 8130 x 4980 x 400 mm feed in the X/Y/Z axis: 5700/2800/1975 mm maximum spindle rotational speed: 500 rpm minimum spindle rotational speed: 2.8 rpm spindle size: 740 x 565 mm spindle diameter: 200 mm spindle taper: ISO 60 angle braces (2 pcs) dimensions (L x W without table x H): 9765 x 4900 x 8110 mm
