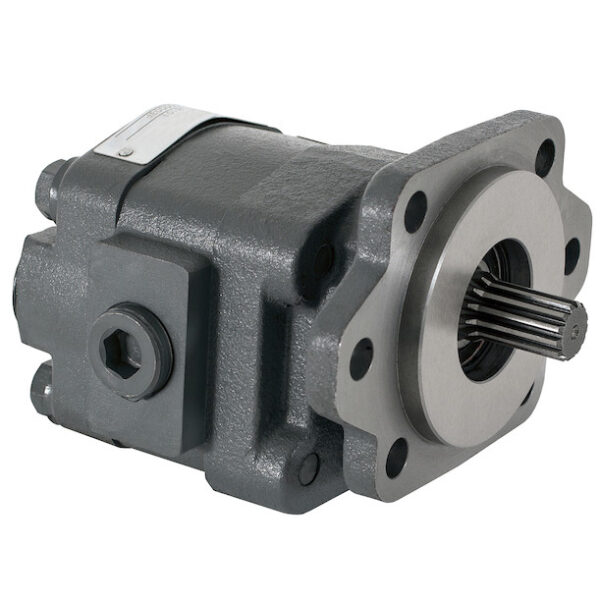

Buyers Products H5134251 – Live Floor Hydraulic Pump With 2-1/2 Inch Diameter Gear

Built tough to handle live floor applications. Features heavy duty roller bearing construction. Eight-doweled design adds structural strength. High-pressure rated — will handle a maximum 3000 PSI. The heavy duty Live Floor Hydraulic Pump from Buyers Products is built tough to handle continuous, high-pressure operations such as a live floor. It features counter clockwise rotation. The pump is constructed of cast iron with Teflon-coated bronze thrust plates and heavy duty roller bearings. Eight internal dowels protect the structural integrity of the pump. Two models both handle a maximum 3000 PSI while delivering a flow of either 18 GPM or 24.2 GPM at 1000 RPM. The pump is designed to be 4-bolt mounted into an SAE B mount.   Displacement 6 Cubic Inches Displacement 24 GPM Gear Width 2.50 Inches Input Mount Type Integral Bracket Material Cast Iron Mount Type SAE B 4 Bolt Pilot Diameter 4 Inches Shaft Size 7/8-13 Shaft Type Splined Ports (Rear/Side) Side Inlet Port Size 1-1/2 NPT Maximum Pressure 3000 PSI Direct Or Remote Mount Direct Mount Outlet Port Size 1-1/2 NPT Rotation Counterclockwise Gear Size 2.50 Inches Flow At 600 RPM 14.52 GPM Flow At 1000 RPM 24 GPM Flow At 1800 RPM 43.56 GPM Flow At 900 RPM 21.78 GPM Flow At 1200 RPM 29 GPM Flow At 1500 RPM 36.3 GPM Flow At 2100 RPM 50.82 GPM Min Order Qty 1 Multiple Sale Qty 1 Product Code 620 Sell Pack Type Box Shipping Weight 50 Lbs UPC 724920096119   Product Common Use: Truck and Trailer Hydraulic Systems, Live Floor Applications
